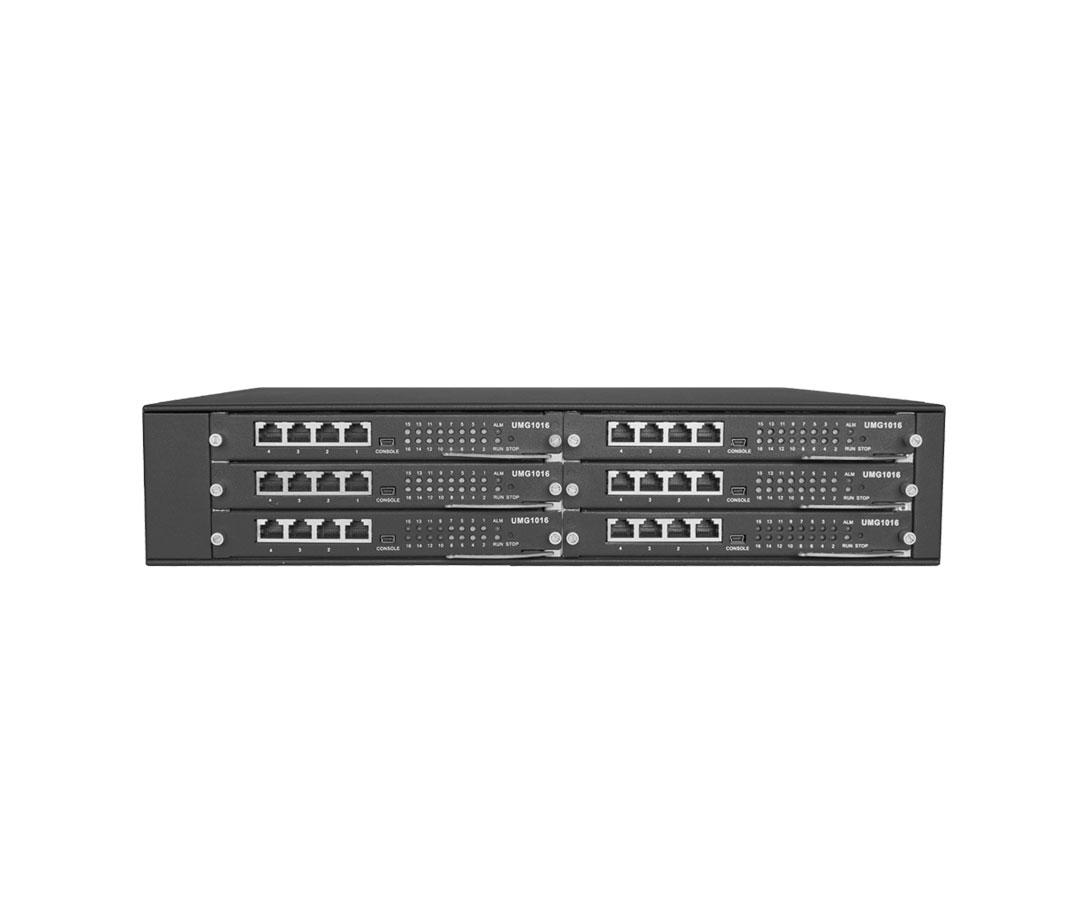

Synway UNIWAY2100 Hybrid VoIP Gateway

Discription

In hybrid VoIP & TDM era Plus diverse and rapidly-growing requires of unified communications and services Synway UNIWAY VoIP Gateway adopts with current modular architecture and built-in server, a new milestone to increase VOIP and TDM network’s value in SP and application developers. Link with FXO, FXS, T1, E1, GSM, CDMA, 3G, VoLTE, IP to send a premium and comprehensive VoIP solution. UNIWAY2100 is composed of various components, included technical grade CPU module, switchboard, dual redundant with power supply and voice boards ,and the boards is 16-channel analog boards,4E1 digital boards, 8 wireless boards.

Features

    Product model:
  • UNIWAY2100
  • Functional module available:
  • UMG-1016: 16*FXO, 16*FXS, or hybrid 8*FXS+8*FXO
  • UMG-2012: 1, 2, or 4E1 (T1)
  • UMG-4008: 4 or 8 Wireless Ports (GSM/CDMA/WCDMA/3G/4G)

VoIP Resources

  • RTP Protocol
  • Compliant with RTP/RTCP protocol (RFC3551, RFC3552);
  • Coding/Decoding: G.711(A-law/μ-law)/GSM/G.729A;
  • Self-adaptive echo cancellation (voice enhancement);
  • RTP DTMF loading (RFC2833);

Quality and Warranty

  • ISO 9001:2000
  • Functional Module: 3-years
  • CPU(including motherboard): 1-year
  • Lifetime Maintenance
