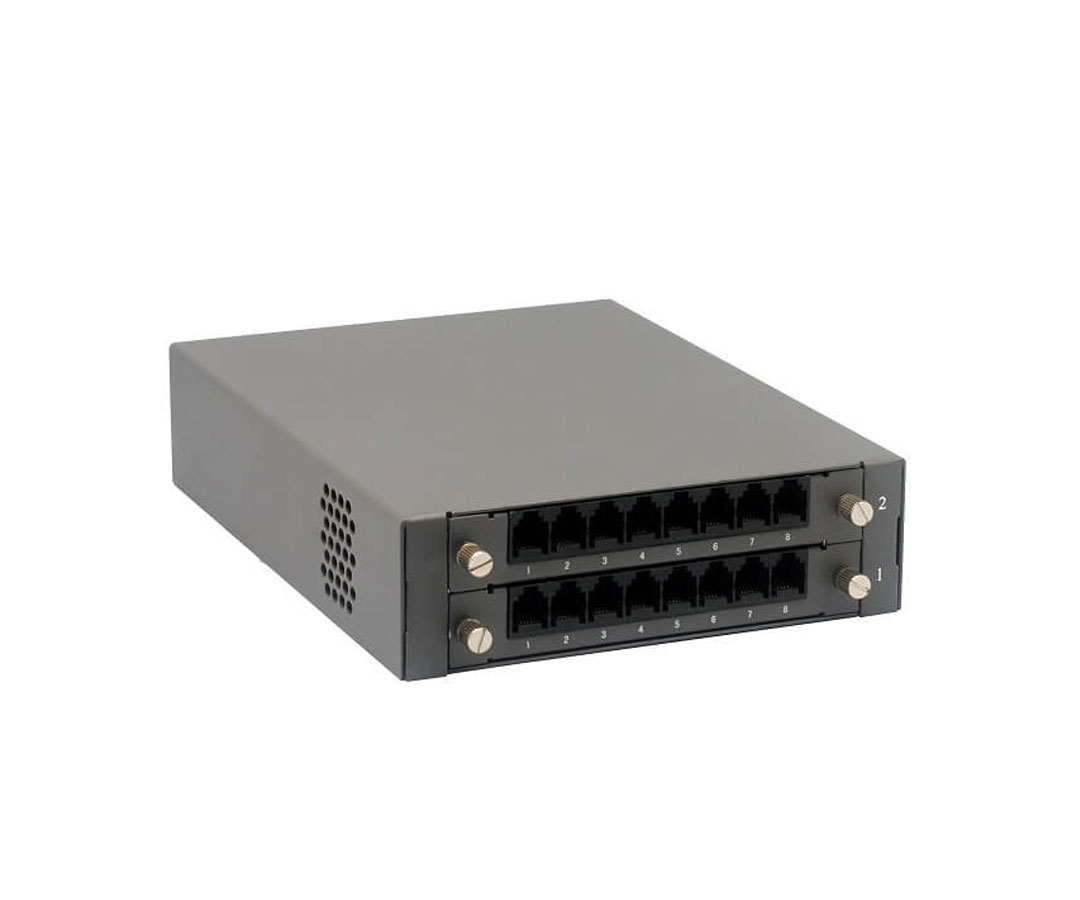

OpenVox VS-GW1202 V2 FXS/FXO Analog Gateway

blog

Discription

VS-GW1202 V2 Analog Gateway, an update product of the VS-GW1202 Series, is now the lead open source Asterisk- based VoIP Gateway solution with the SMBs and SOHOs. With a friendly GUI, its modular design is unique, users may simply set up and customized Gateway. Also, secondary development can be finished through AMI (Asterisk Management Interface). The VS-GW1202 V2 Analog Gateway usage standard SIP protocol with compatible and Leading IMS/NGN, IPPBX and SIP servers, help most of the VoIP operating structure such as Asterisk, Elastix, 3CX, Free SWITCH, Broad soft, etc.

Technical Specifications:

  • Simple and convenient configuration via Web GUI
  • Support http / https / SSH
  • Basic security strategy(white/black list, security rules)
  • Optional GSM Voice Codec
  • SIP(RFC3261) compliance
  • Support diverse SIP, IAX2 protocols
  • Multiple SIP/IAX2 Registration models: None, server, client DTMF Signaling support: RFC2833, In band, SIPINFO
  • Real Open API Protocol(based on Asterisk)
  • Support static IP and DHCP
  • Call Duration Limit
  • CLIR(Call Line Identification Restriction)
  • Call Waiting
  • Call Forwarding (unconditional, no reply, busy, not reachable)
  • SMSC/SMS/USSD
  • SMS bulk transceiver, SMS automatically resend, Sent to Email
  • Support HTTP SMS interface
  • SMS Forwarding
  • USSD transceiver
  • SMS remotely controlling gateway
  • IMEI number automatically modify
  • PIN identification
  • Mobile number portability (MNP)
  • Flexible routing settings & unlimited routing rules
  • Support DISA
  • Extensible Automatic Callback and Speed Dial
  • Customizable IVR
  • CDR(More than 200,000 Lines CDRs Storage Locally)
  • Support configuration files backup and upload
  • Support for custom scripts, dial plans
  • Least Cost Routing(LCR),according to Time, Port, Calling Number/li>
  • Independent System for Each Module
  • Affordable Price with Superior Performance
  • Hot-swap Design for both Sim cards and Modules
  • Compatible with sip server, such as: Asterisk, Elastix, 3CX, Free SWITCH, etc.
  • Available for OEM
  • 3-Month "No Questions Asked" Return Policy
  • One Year Warranty
