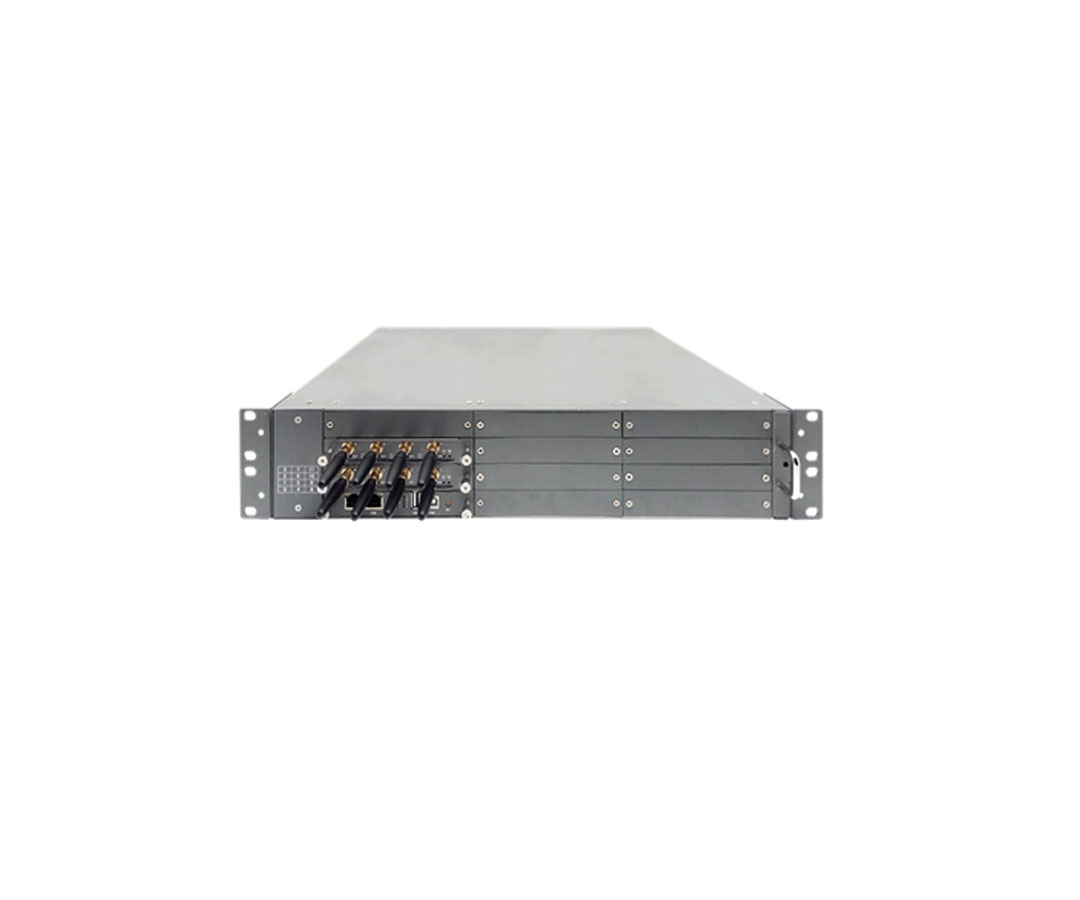

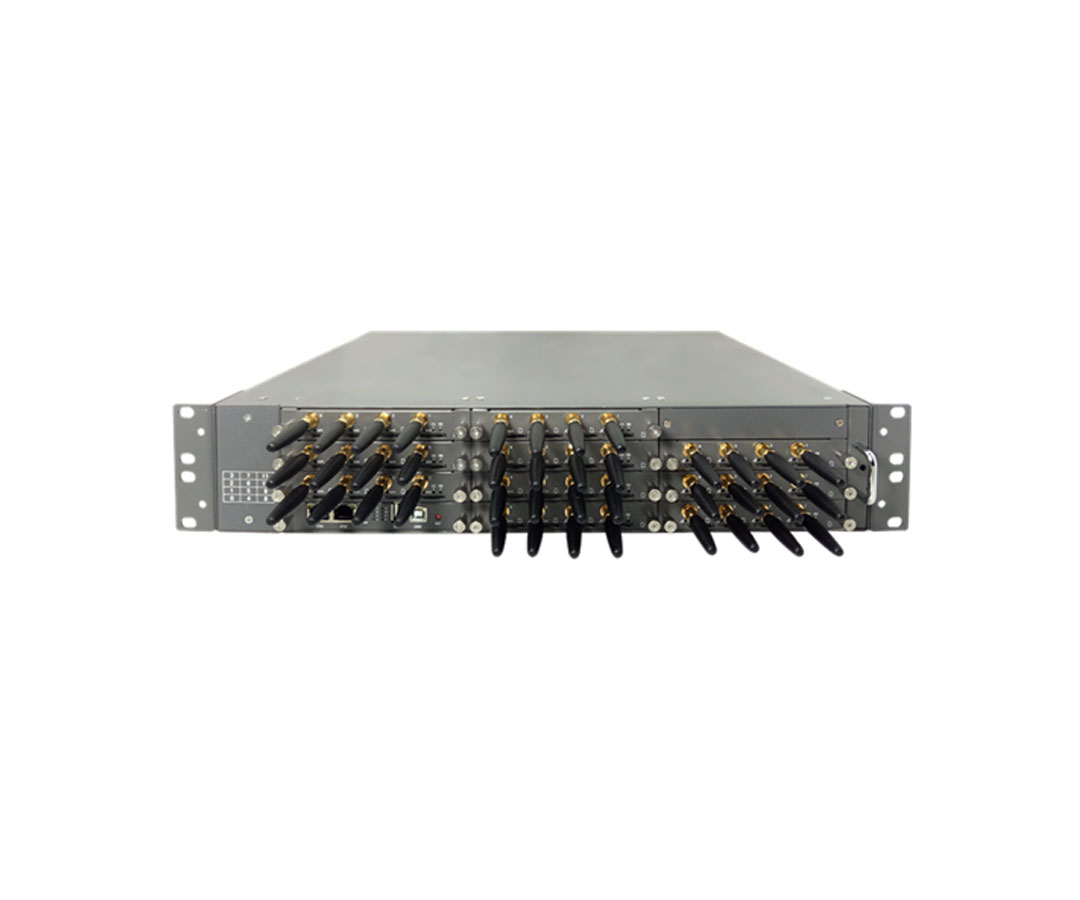

OpenVox VS-GW2120 V2 LTE Wireless Gateway

Discription

VS-GW2120 V2 Wireless Gateway, an upgrade product in the VS-GW2120 Series, is now the following open source Asterisk-based VoIP Gateway solution with SMBs and SOHOs. With friendly GUI and unique modular design, the visitor may easily set up their customized Gateway. Also, secondary development is often completed through AMI (Asterisk Management Interface).

Features

  • Simple and convenient configuration via Web GUI
  • Support http / https / SSH
  • Basic security strategy(white/black list, security rules)
  • Optional GSM Voice Codec
  • Codecs support: G.711A, G.711U, G.729, G.723.1, G.722, G.726,GSM
  • SIP(RFC3261) compliance
  • Support diverse SIP, IAX2 protocols
  • Multiple SIP/IAX2 Registration models: None, server, client DTMF Signaling support: RFC2833, In band, SIPINFO
  • Real Open API Protocol(based on Asterisk)
  • Support static IP and DHCP
  • Call Duration Limit
  • CLIR(Call Line Identification Restriction)
  • Call Waiting
  • Call Forwarding (unconditional, no reply, busy, not reachable)
  • SMSC/SMS/USSD
  • SMS bulk transceiver, SMS automatically resend, Sent to Email
  • Support HTTP SMS interface
  • SMS Forwarding
  • USSD transceiver
  • SMS remotely controlling gateway
  • IMEI number automatically modify
  • PIN identification
  • Mobile number portability (MNP)
  • Flexible routing settings & unlimited routing rules
  • Support DISA
  • Extensible Automatic Callback and Speed Dial
  • Customizable IVR
  • CDR(More than 200,000 Lines CDRs Storage Locally)
  • Support configuration files backup and upload
  • Support for custom scripts, dial plans
  • Least Cost Routing(LCR),according to Time, Port, Calling Number/li>
  • Independent System for Each Module
  • Affordable Price with Superior Performance
  • Hot-swap Design for both Sim cards and Modules
  • Compatible with sip server, such as: Asterisk, Elastix, 3CX, Free SWITCH, etc.
  • Available for OEM
  • 3-Month "No Questions Asked" Return Policy
  • One Year Warranty
shape

VS-GW2102 V2 LTE Wireless Gateway Frequency Range

Module Type GSM WCDMA LTE
Band GSM 850/900/1800/1900MHz Europe
900/2100MHz @UMTS
900/1800MHz @GSM
America
850/1900MHz @UMTS
850/900/1800/1900MHz @GSM
Thailand
850/2100MHz @UMTS
850/900/1800/1900MHz @GSM		 India/China
LTE FDD: B1/B3/B5/B8
LTE TDD: B38/B39/B40/B41
WCDMA:B1/B8
TD-SCDMA: B34/B39
CDMA: BC0
GSM: 900/1800MHz		 EMEA/Korea/Thailand
LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD:B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8		 Australia/New Zealand/Taiwan/Brazil
LTE FDD:B1/B2/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
